100-240VAC (Range: 90-264Vac)
12-55V
0.1-12.5A

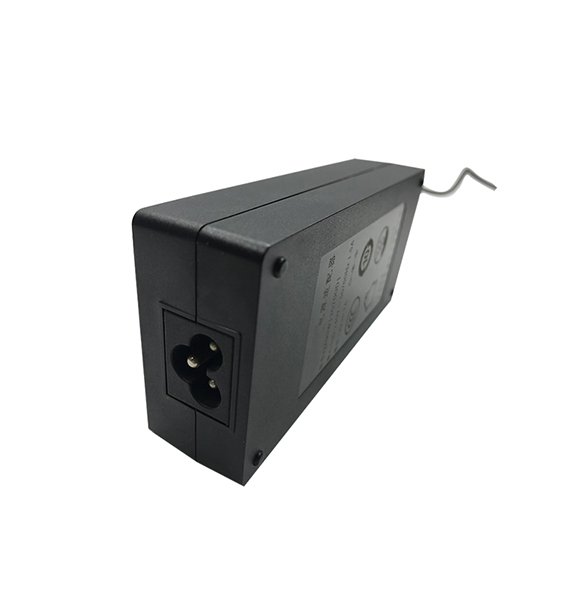

C8 or C6 or C14 or attached with AC cable
UL, CCC, FCC, UKCA, CE, ROHS, REACH,RCM, SAA, C-TICK, EAC, S-mark
UL62368-1,EN62368-1,CNS15598-1,GB4943,J62368-1
EN55032 class B,EN61000-3-2,-3,FCC Part 15/ CISPR32,CNS15936 class B，GB9254,GB17625.1
black or white optional
5.5*2.1mm, 4.0*1.7mm, 3.5*1.35mm, 4 pin dim, molex 4pin etc..
0.1W.
With Over-current, over-voltage, short-circuit, over-temperature protection to protect circuit.
The input power shall be less than 0.21W at 115 or 230Vac input.
PF＞0.9（115V-230VTEST）
Measured at 115Vac or 230Vac input voltage, 100% load ,The efficiency is 85% Min.
Measured at 115Vac or 230Vac input voltage, Average efficiency can reach energy star VI (88.00%) standard.
Primary to Secondary: 1500Vac /10mAMax / 60S (when safety testing)；
Primary to Secondary: 1800Vac /5mAMax / 3S (when production).
100MΩ Min. between primary to secondary add 500Vdc test voltage.
3.5mA maximum, at nominal AC input voltage and frequency.
2 hours at 35°C maximum, Normal input voltage, rated load.
EMS Standards；
SURGE LEVEL: ±1KV(DM), ±2KV(CM) Standards IEC61000-4-5.
Note：Power supply is not damaged, allowing restart.
When the power supply is operating within the limits of this specification the MTBF shall be at least 30000 hours at 25℃ (MIL-HDBK-217F).
0℃ to +35℃、10%RH to 90%RH、Storage Temperature and Relative Humidity
-25℃ to +70℃、
5%RH to 95%RH、 non-condensing
1M for wall mount type and 0.76M for desktop as above described. Test times for each 1 times, a total of 6 times The horizontal surface consists of hardwood at least 13mm thick,the plug can be bend, and scratch, but the structure should not be damaged, and can work normally
10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour for each of the perpendicular axes X, Y, Z.
